Stretch Hooding by Innova:
A Stretch Hood Range Designed to Fit Your Packaging Line

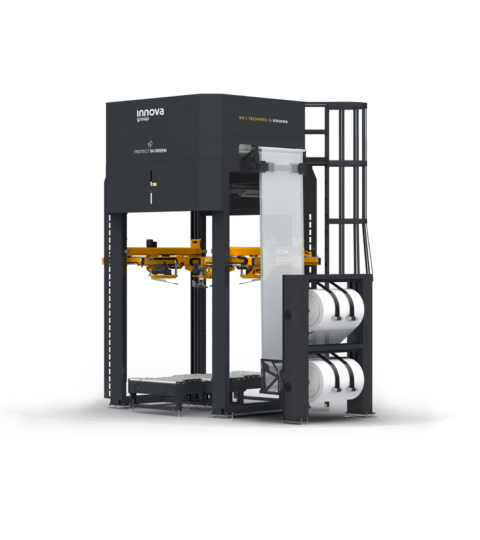

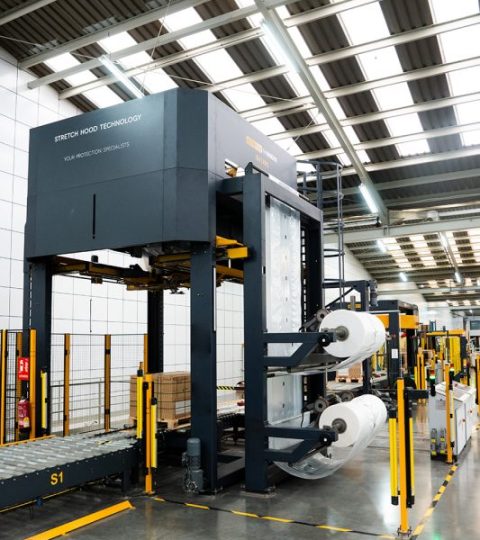

Stretch HoodSH|PRO
Innova’s Stretch Hood PRO is our standard range, known for its robust yet versatile design and proven performance across thousands of installations in different industries.
Stretch Hood PRO delivers high productivity and reliable load protection while adapting to different load formats and packaging requirements. It can accommodate up to five film reels and handle tall palletized loads.
TECHNICAL SPECIFICATIONS
- Production Capacity: Up to 120 pallets/hour
- Operating Film Thickness: 60–130 μm
- Maximum Load Dimensions: 1,300 × 1,250 mm (other dimensions available upon request)
- Maximum Load Height: 2,500 mm (customized heights available based on customer requirements)
- Maximum Load Weight: 2,000 kg (adaptable to other load requirements)
- Number of Film Reels: 1–3 (depending on customer requirements)

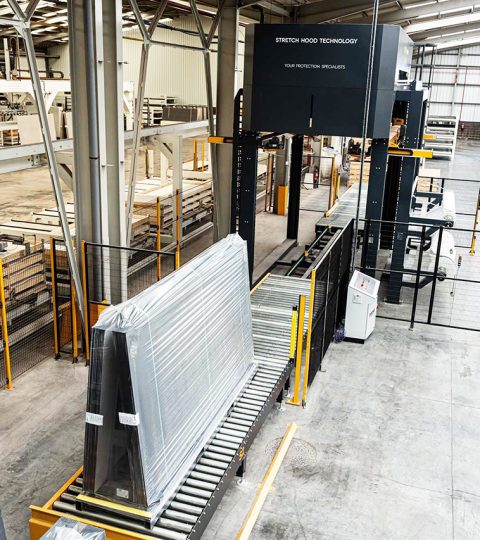

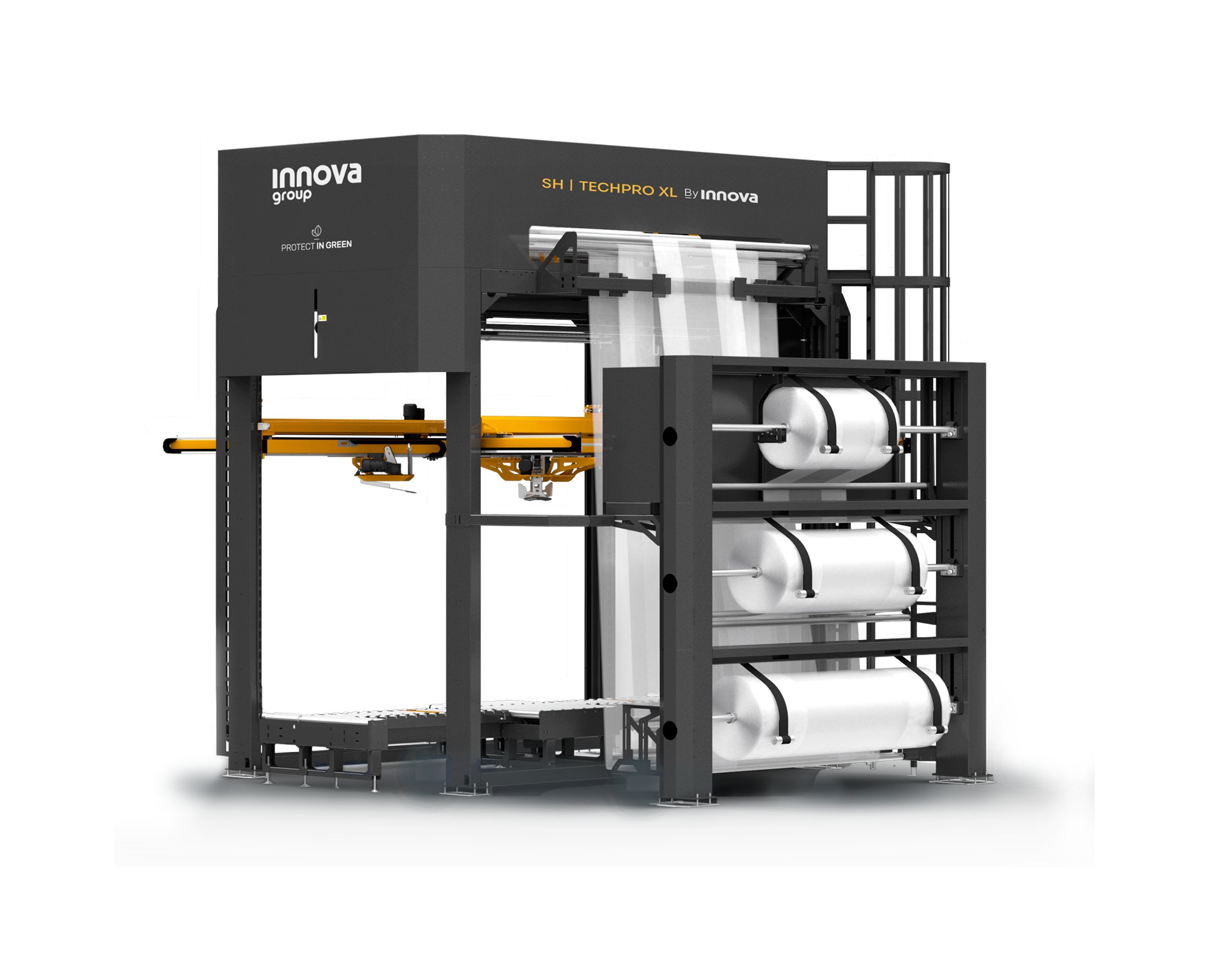

Stretch HoodSH | PRO XL
Part of Innova’s PRO range, the Stretch Hood PRO XL is specifically designed for packaging oversized loads. This specialized Stretch Hood system protects products up to 3,800 mm in length, including slabs, panels, drywall, furniture, and other construction materials.
Stretch Hood PRO XL not only provides an automated packaging solution for these industries but also helps improve productivity and reduce packaging material consumption.
TECHNICAL SPECIFICATIONS
• Production Capacity: Up to 70 pallets/hour
• Operating Film Thickness: 60–130 μm
• Maximum Load Dimensions: 3,800 × 1,250 mm (other dimensions available upon request)
• Load Height: 400–2,500 mm (other heights available upon request)
• Maximum Load Weight: 2,000 kg (adaptable to other load requirements)
• Number of Film Reels: 1–3 (depending on customer requirements)

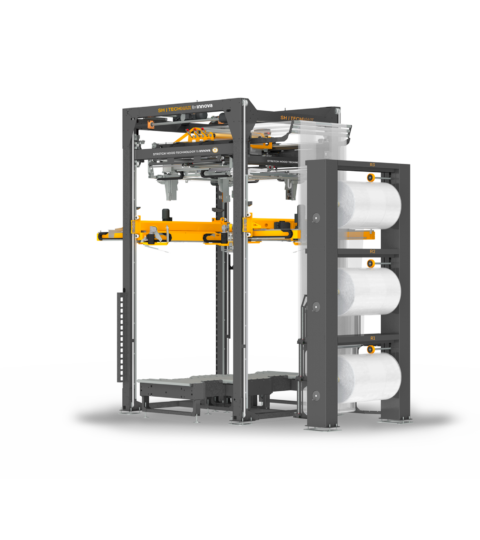

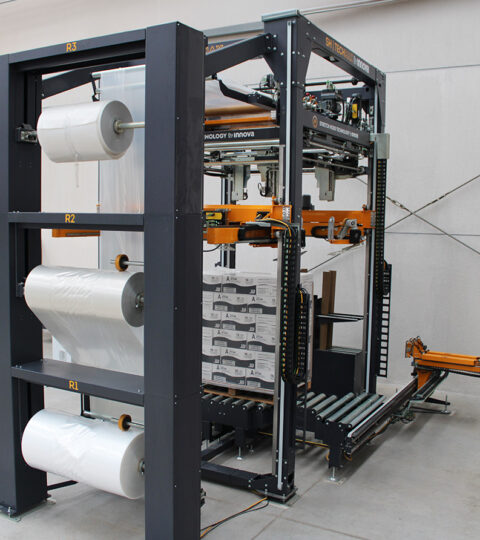

Stretch HoodSH|TECHMAX
Stretch Hood TechMAX represents Innova’s next generation of pallet hooding systems. Featuring an innovative hooding head lowering system that brings the head down to floor level, it improves operational safety and makes maintenance and film changes safer and more accessible, addressing a key demand in industrial packaging operations.
TechMAX also delivers high productivity of up to 180 pallets per hour and incorporates regenerative motor technology along with advanced control and automation features.
TECHNICAL SPECIFICATIONS
• Production Capacity: Up to 180 pallets/hour
• Operating Film Thickness: 40–130 μm
• Maximum Load Dimensions: 1,300 × 1,250 mm (other dimensions available upon request)
• Load Height: Up to 2,400 mm (other heights available upon request)
• Maximum Load Weight: 2,000 kg (adaptable to other load requirements)
• Number of Film Reels: 1–3 (depending on customer requirements)
